A motorized 2-axis valve control for drip photographers, there is nothing like this on the market yet.

• You no longer want to adjust the solenoid valves by hand?
• Do you want to make minimal corrections to your valve settings in any direction?
• You don’t want to go to the drop rack to make these adjustments?
• Is the splash guard always in your way when adjusting the valves?

The newly developed motorized solenoid valve system MMV promises a remedy

Description

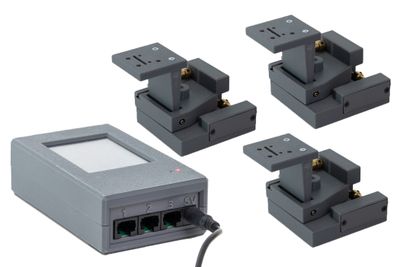

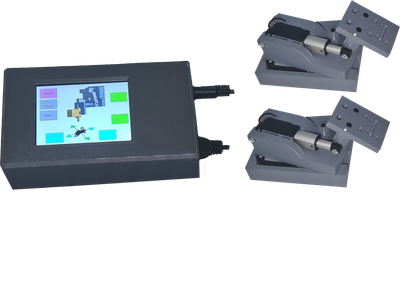

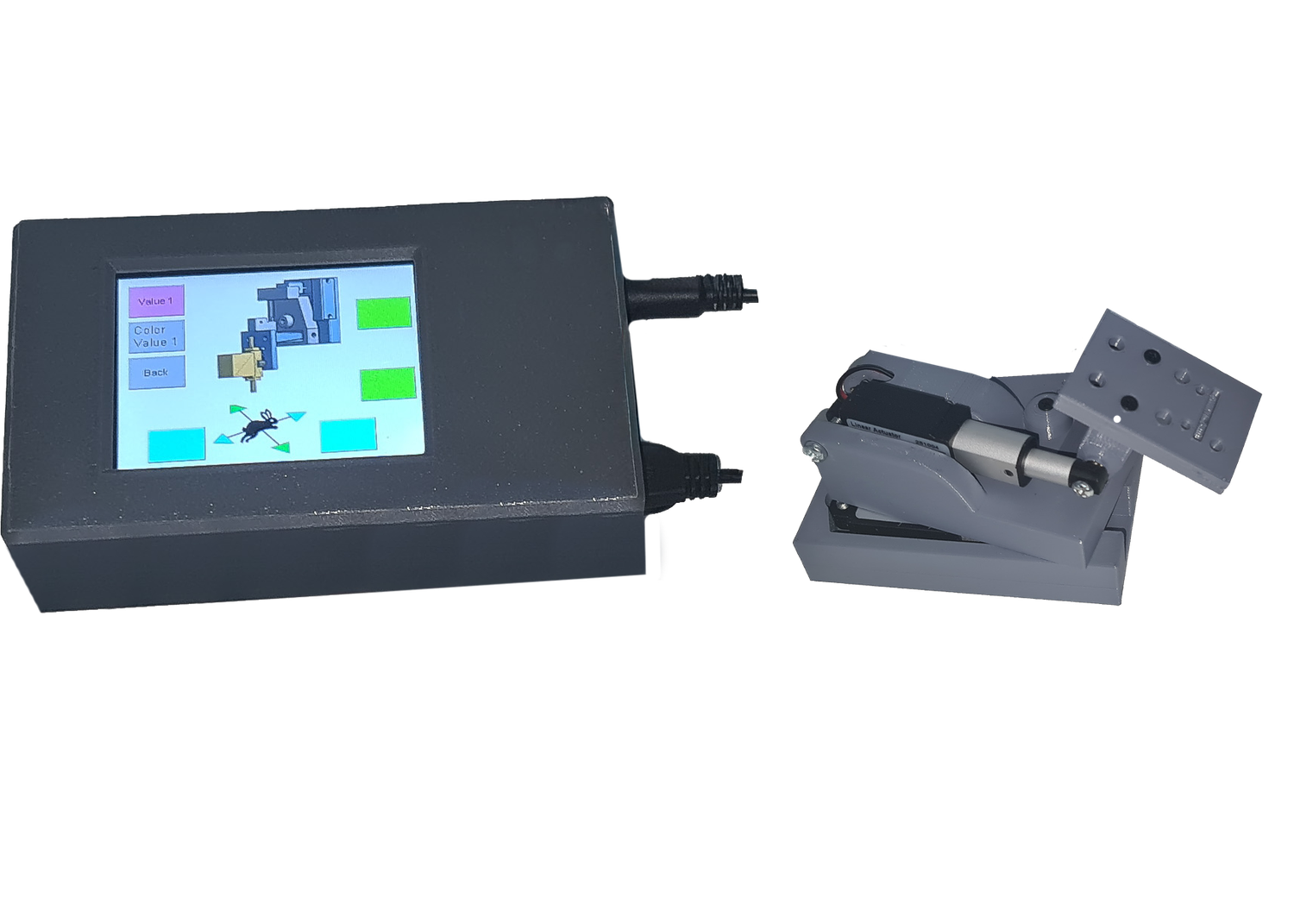

• MMV-C control unit consisting of:
  – Housing with 2.8” touch display
  – Sockets for connecting a maximum of 3 MMV valve control units
  – Connection for a 5VDC plug-in power supply unit
  – Display pages:
  Home page with valve selection
  3 valve pages with the associated control buttons
  3 color selection pages to assign the color of the liquids to the valves for a better overview
  Language selection DE/EN
• MMV Motorized valve control consisting of:
  – 3D printed parts, rotatable in two axes
  – Movement radius approx. +/- 15 degrees
  – 2 built-in linear motors
  – Built-in control electronics
  – Connection cable approx. 1.5 m with plug
  – Removable valve mounting plate with attachment points for 3 different valve types
  – Additional bracket with 1/8” thread for the use of hose nozzles (for remote solenoid valve)

Scope of delivery

1 MMVC
1 power supply unit 5VDC (CH plug)
1 MMV
1 pc holder for MMVC

The devices are manufactured to order.
Depending on the delivery status of components, delivery may take some time.
Please allow 2-3 weeks.
