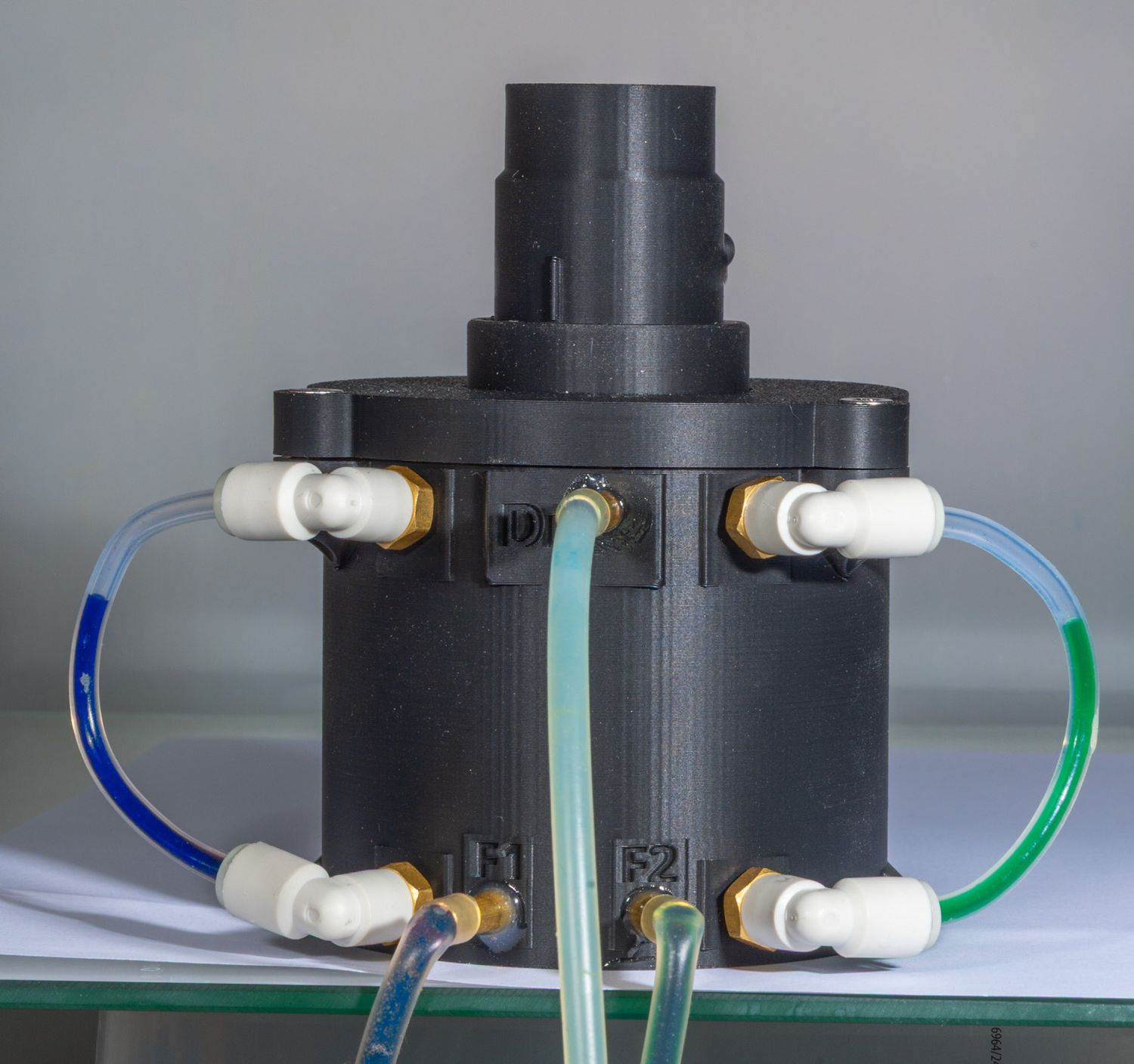

Pressure vessel for 2 separate colors, with nozzle holder

The vessel is mounted in a base to ensure stability.

This holder can be screwed on or attached to a metal plate using the integrated ring magnet.
(The ring magnet has a holding force of 11 kg). It is also possible to simply place the holder (without screw) in a drip tray. In this case, a counter magnet is required under the drip tray.

The vessel can be filled with one or two different colors.

The fountain is triggered by a burst of compressed air. This burst of air is supplied via a separate connection.
This causes it to hit a large surface area of water and only a small amount of pressure is required (0.5 – 1 bar / 7-14 PSI).

Scope of delivery:
1 vessel holder with screw hole and integrated ring magnet
1 pressure vessel with seal and screw cap
1 trick nozzle type C-t (separate fountain)

Key
1 = Base
2 = Ring magnet
3 = Vessel / 3a = Nozzle holder
4 = Seal
5 = Lid

A = Filling color 1 (without pressure)
B = Filling color 2 (without pressure)
C = Compressed air connection
D = Vent (open when filling with paint)
